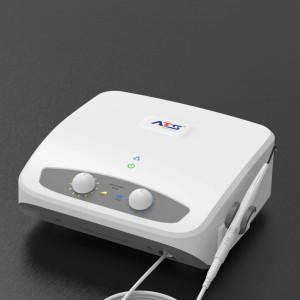

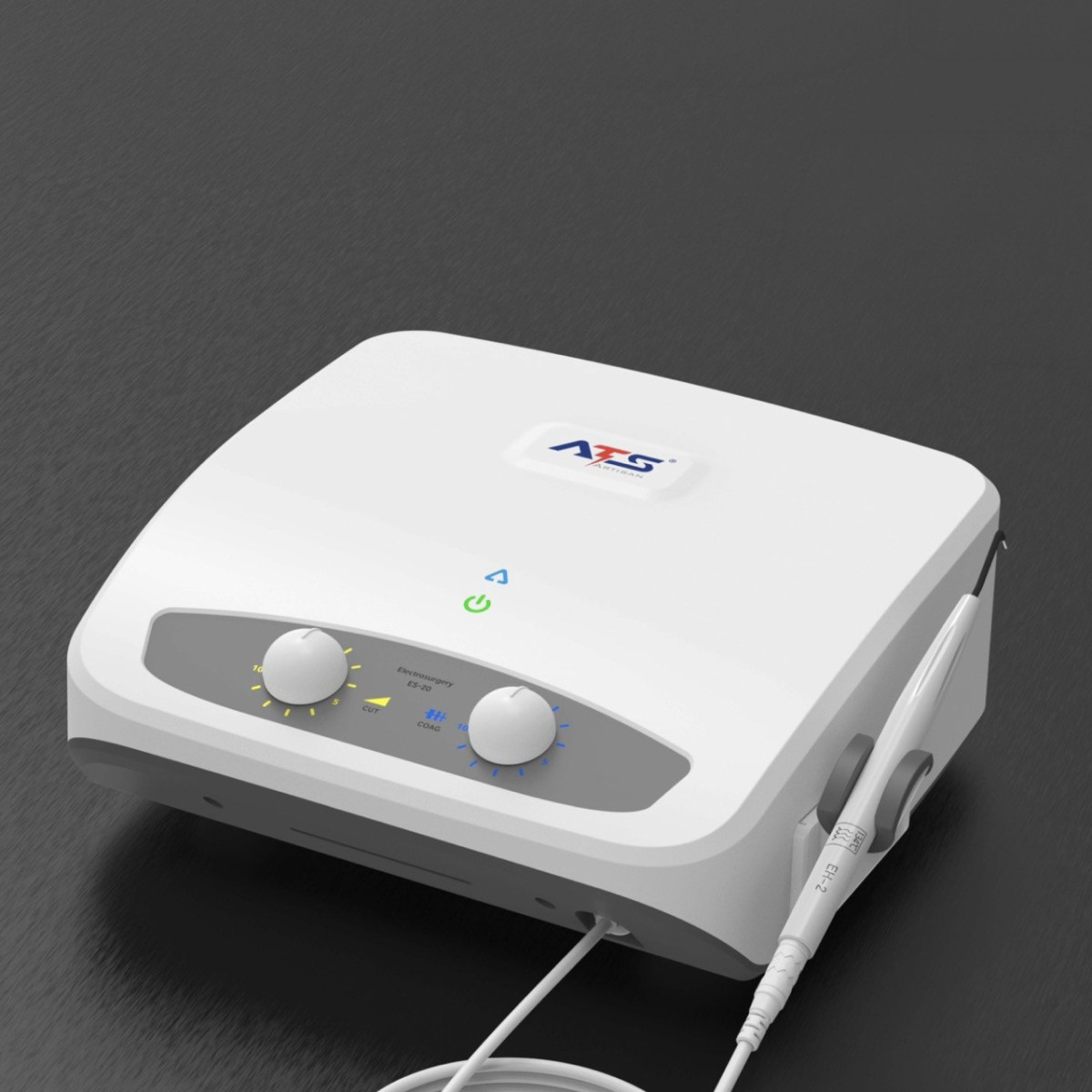

High-Frequency Electrosurgical Unit ES-20

In modern dentistry, the speed of manipulation and the cleanliness of the operating field are critical success factors.

ES-20 is a compact high-frequency coagulator with a power of 30 W, designed for precise incision (cutting) and effective coagulation of soft tissues.
Thanks to the output frequency of 1.2 MHz, the unit provides smooth tissue dissection without mechanical pressure, significantly accelerating the healing process and minimizing postoperative discomfort for the patient.

Professional solution for modern dentistry

ES-20 is a powerful electrosurgical unit specifically designed for the needs of dental practice. It provides fast and extremely precise soft tissue incision with instant hemostasis. Thanks to a modern electronic design, the device ensures minimal energy loss and stable performance during complex surgical procedures.

Key technological advantages:

• Three operating modes: In addition to standard Cut and Coagulation functions, the unit features a Fulguration mode (superficial coagulation + coagulating cut), allowing delicate gingival treatment while protecting underlying tissues.
• Double Knob Control: A system with two separate potentiometers allows independent and highly precise adjustment of cutting and coagulation parameters depending on the patient’s tissue type.
• Innovative neutral electrode: Instead of traditional plates, a conductive bracelet is used, ensuring direct skin contact, easier disinfection, and improved patient comfort.
• Safety and hygiene: The electrode holder is extremely lightweight and fully autoclavable. The electrodes have an insulated coating, so only their active part contacts the tissue, preventing accidental burns.

Clinical applications by specialty:

• Surgery: Exposure of impacted teeth (operculectomy), incision and drainage of abscesses, frenectomy, removal of pericoronal tissue.
• Periodontology: Gingivectomy for ideal gingival contour, gingivoplasty, and flap surgeries.
• Restorative and Prosthodontics: Clinical crown lengthening, removal of hypertrophic gingiva, and gingival sulcus widening before impression taking.
• Orthodontics: Rapid exposure of teeth for bracket placement.

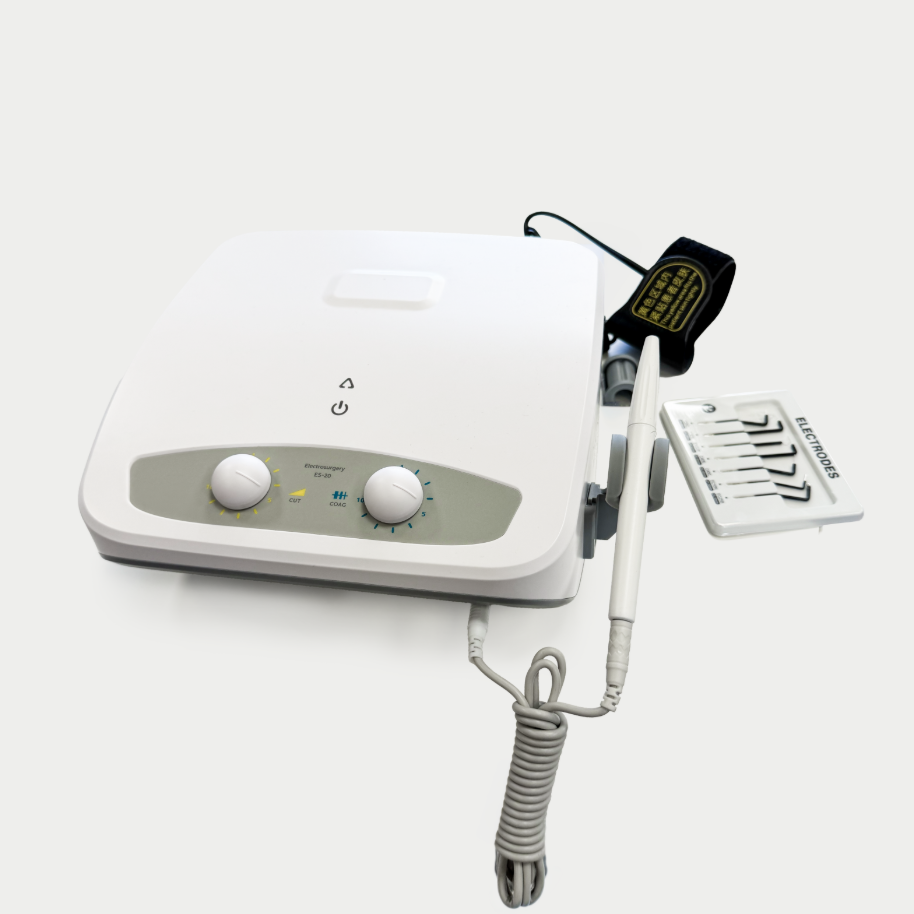

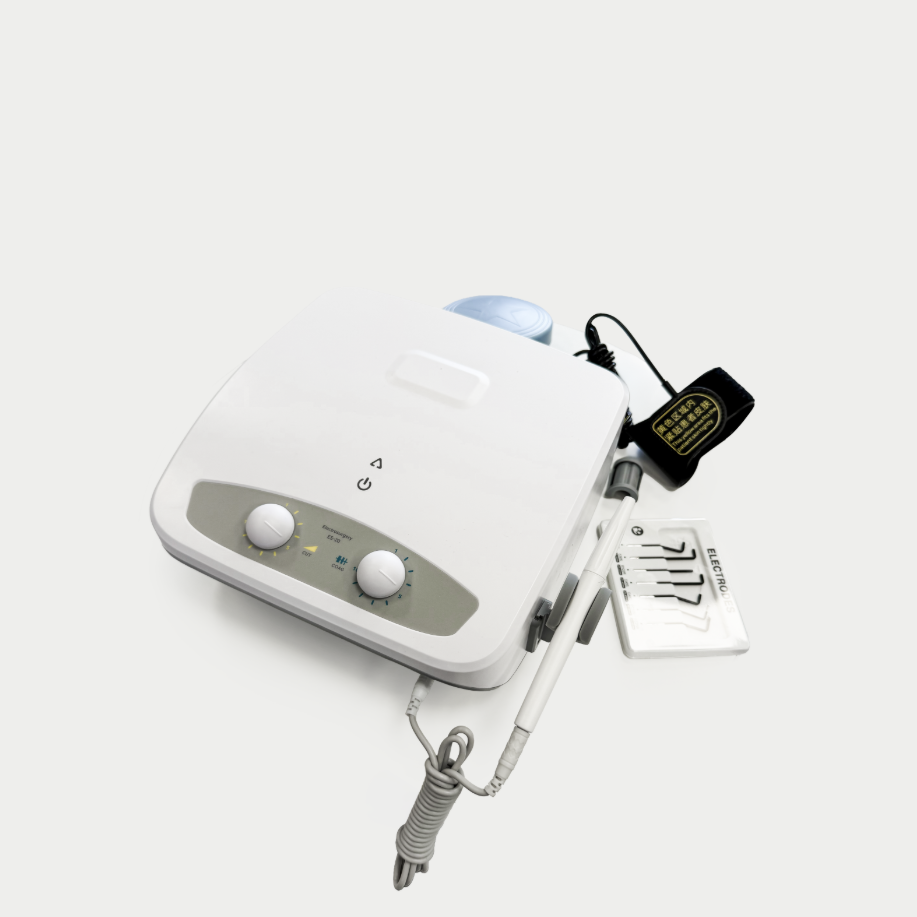

“Ready-to-Work” package

The standard package includes everything required for immediate use:

1. Main ES-20 unit.
2. Set of 7 types of ultra-thin electrodes of various shapes and diameters (for cutting, excision, and coagulation).
3. Electrode holder with cable.
4. Wired foot control pedal.
5. Neutral bracelet.
6. Two silicone stands for the holder.
7. Power cable with grounding.
8. Full documentation package: user manual, warranty card, and packing list.

Technical specifications:

• Maximum output power: 30 W.
• Power supply: 115/230 VAC (50/60 Hz).
• Weight: Net — 2.0 kg; Gross — 3.0 kg.
• Device dimensions: $23 \times 26 \times 11$ cm.

Practical significance of key features

• Dual-channel control (Double knob): unlike basic models, the ES-20 is equipped with two separate controls for adjusting cutting and coagulation power. This allows operation in mixed mode or independent use of functions, adapting to clinical conditions in real time.
• High frequency 1.2 MHz: this frequency minimizes thermal damage to wound edges, ensuring a smooth cut without carbonization.
• Neutral electrode bracelet: using a bracelet instead of a bulky plate improves ergonomics and enhances patient comfort during procedures.
• Set of 7 specialized electrodes: enables a wide range of tasks — from pinpoint hemostasis (EC electrodes) to excision of lesions (EX22R electrode).

Advantages

• Stable energy: efficient component integration ensures a stable arc, guaranteeing predictable cutting results.
• Clear visualization: the unit generates minimal smoke, providing an excellent view of the operating field.
• Ergonomic handpiece: the lightweight electrode holder is designed for prolonged use without hand fatigue.
• Sterility: the handpiece and electrodes withstand a full high-temperature sterilization cycle.

Disadvantages

• Power limitation: 30 W is sufficient for dentistry, but may be insufficient for extensive maxillofacial surgeries.
• Implant caution: like all monopolar devices, requires caution when used near metal structures (implants).

Solutions for specialized needs

• Prosthodontist: gingival sulcus widening and contouring before impressions without risk of recession.
• General dentist: fast and bloodless removal of hyperplastic gingival papillae in Class V caries treatment.
• Orthodontist: exposure of impacted teeth for bracket placement; frenulum correction.
• Surgeon: bloodless abscess incision, frenuloplasty, and removal of benign mucosal lesions.

Frequently asked questions

1. What is the ES-20 used for?
   It is a professional tool for bloodless incisions and immediate hemostasis in the oral cavity.
2. Can ES-20 be used in patients with pacemakers?
   No, use is strictly prohibited if the patient or operator has active implants (pacemakers, cochlear implants, etc.).
3. What is the service life of the device?
   The manufacturer specifies a use period of 5 years.
4. How often should electrodes be replaced?
   Regularly used electrodes should be replaced every 6 months to maintain precision and safety.
