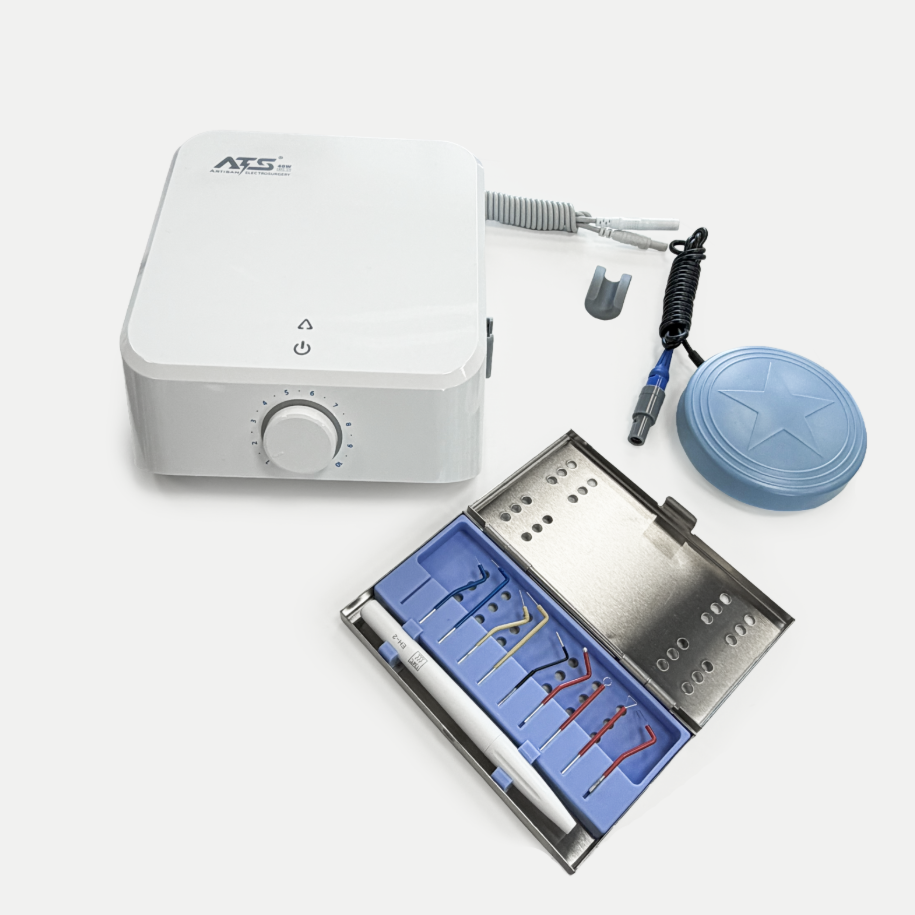

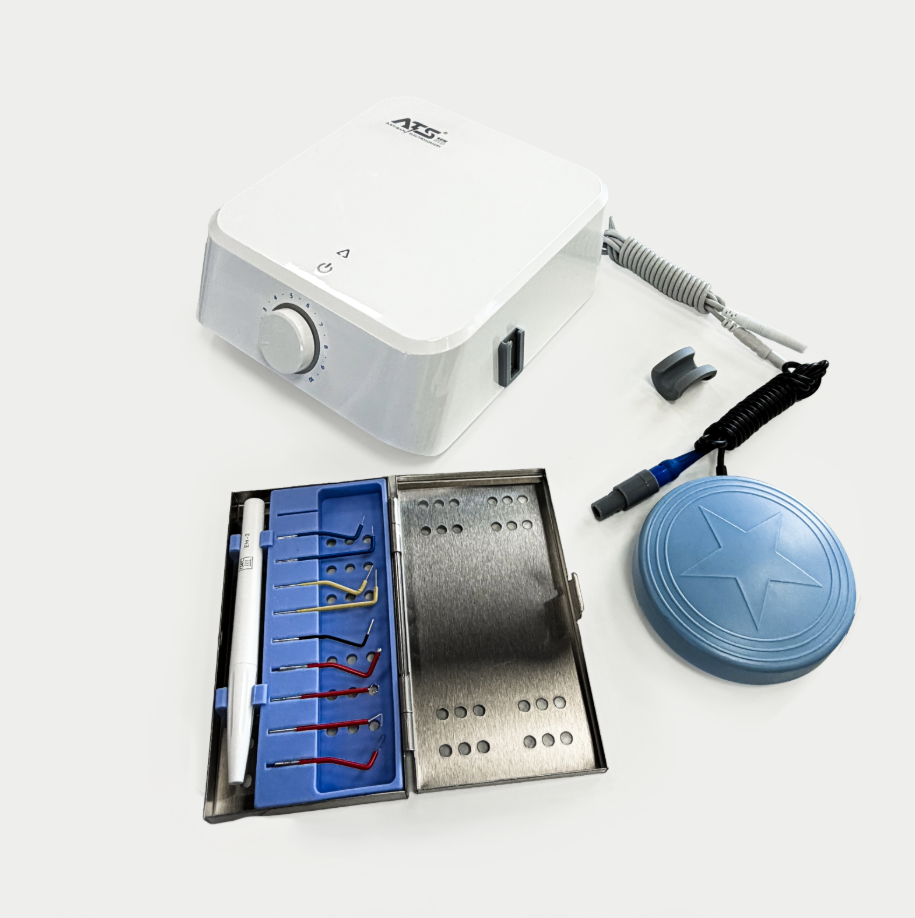

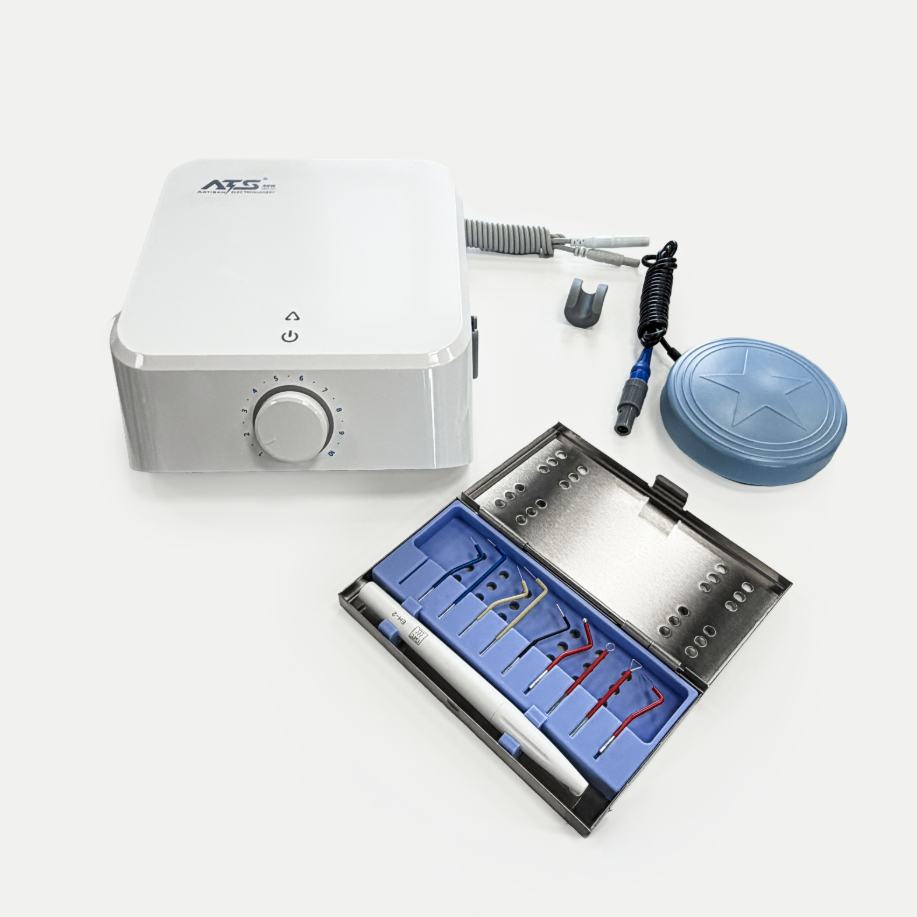

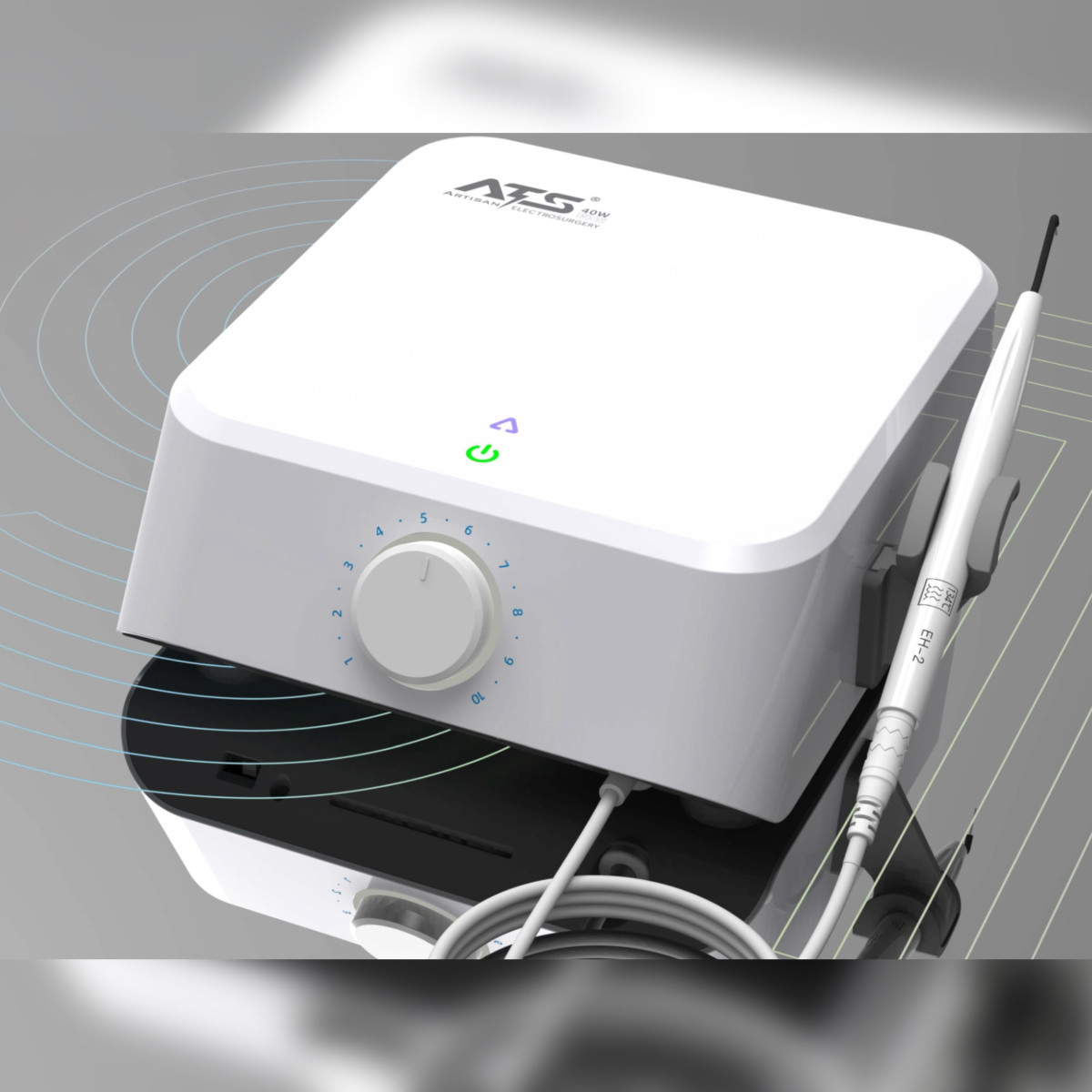

High-Frequency Electrosurgical Unit ATS-S1 (Artisan)

ATS-S1 is a full-fledged radiofrequency surgical knife, where coagulation is one of two equally important functions. The 40 W unit is designed to fully replace the traditional scalpel, providing a sterile incision without bleeding or pain.

Technological excellence in detail

• Intelligent coagulation: The unit automatically adjusts parameters for instant hemostasis, allowing uninterrupted surgical workflow.
• Precision electrodes: The set includes 9 ultra-thin electrodes (diameter from 0.22 mm to 1.00 mm) for work in delicate areas without damaging healthy tissues.
• Innovative bracelet: Instead of bulky plates, a neutral electrode bracelet is used, complying with international standards and improving patient comfort.
• Sterility and durability: The lightweight handpiece is detachable and withstands a full autoclaving cycle. The service life of the device is increased by 60% (up to 8 years).

Advantages:

• Fast healing: Absence of tissue contusion ensures scar-free regeneration.
• Minimalism: Power adjustment with a single knob (scale 1–10).
• Efficiency: Procedures last 5–10 minutes, reducing anesthesia risks.

Disadvantages:

• Limitations: Prohibited for use in patients with pacemakers.
• Specifics: Tissue vaporization requires a high-quality surgical suction unit to remove odor.

Electrode selection recommendations:

• C30 Series (Blue): Ultra-thin (0.30 mm) for maximum precision incisions.
• C40 Series (Yellow): Standard (0.40 mm) for general surgical procedures.
• EC10N (Black): Combined electrode (1.00 mm) for simultaneous cutting and coagulation.
• EC25B (Red): Specialized ball electrode (2.50 mm) exclusively for hemostasis.
• EX22 Series (Red): Loops and diamonds (0.22 mm) for tissue shaping (contouring).

Important safety notes:

1. Start low: Always begin from the lower end of the specified power range, gradually increasing until a clean incision without tissue resistance is achieved.
2. Bracelet contact: Ensure the neutral bracelet has firm contact with the patient’s skin for stable device operation.
3. Sterilization: The handpiece and electrodes must be autoclaved after each patient to prevent cross-contamination.

Solutions for different specialties

• Implant surgeons: Ideal for implant uncovering and gingivectomy.
• Orthodontists: Fast exposure of impacted teeth and correction of gingival hyperplasia.
• Prosthodontists: Gingival contouring before prosthetics and sulcus expansion.

Frequently asked questions

1. Difference from a laser?
   ATS-S1 works faster for incisions and provides better coagulation of small vessels at a significantly lower cost.
2. Can it be used for canal sterilization?
   No, the unit is intended exclusively for soft tissues.
3. How often should electrodes be replaced?
   With intensive use — every 6 months to maintain cutting precision.
